Position

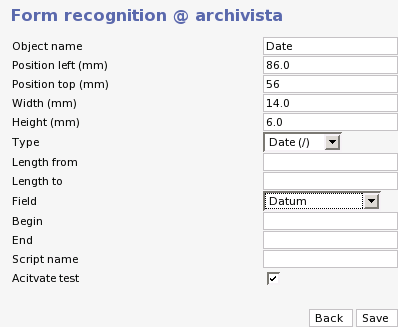

By means of the fields Position left and Position top the distance from the left and the upper page margins may be defined. The upper left corner constitutes the point of origin. Thereby the page length corresponds to the y-axis and the page width to the x-axis.
Example: The invoice number can be found 9cm from the left and 6cm from above. If you work with logo recognition you enter 89mm for 'Position left' and 59mm for 'Position top'. If you work without logo recognition, you must calculate approximately three millimeters of additional leeway, i.e. enter 86mm and 56mm, respectively.
